Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums

Model Number : PP

MOQ : ≥1

Price : USD35000

Payment Terms : L/C, Western Union, T/T, MoneyGram

Supply Ability : 1 SET/1 month

Delivery Time : 1 month

Packaging Details : Standard export wooden case

Product name : PP 2 Stage Pusher Centrifuge For Salt Dewatering

Application : Industrial/Chemical

MOC : SS304/SS316L/DSS etc.

Keyword : Pusher Centrifuge

Centrifugal Type : Centrifugal Filtration

Power Supply : 220V/380V/440V/460V/50HZ/60HZ

Pump Motor : 5.5-45KW

Discharge Type : Double Drums

Operation : Automatic Continuous Operation

Working Type : Continuous Separation

Contact Now

Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
We are experts in centrifuge production. Pusher centrifuge is a horizontal double-stage piston centrifuge, It is well designed, accurately manufactured, and all touching parts are made of special SS with high corrosion resistance, extremely low carbon content, high molybdenum content or any SS required by the customer.

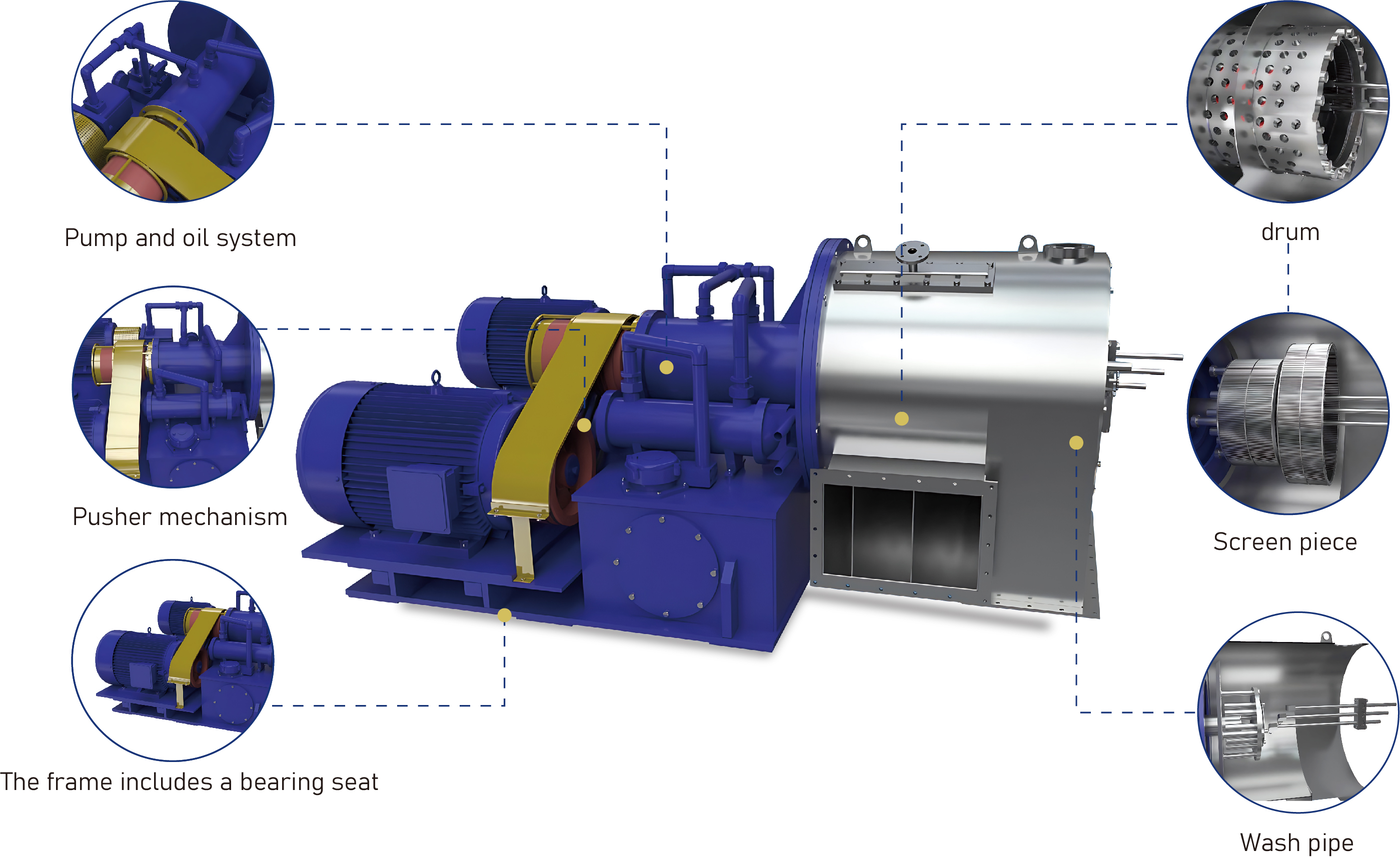

Equipment Structure

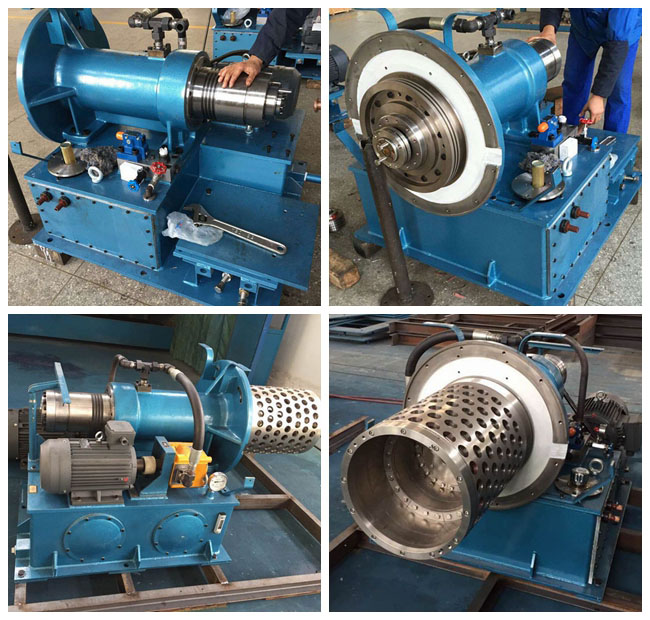

Our pistons pushing centrifuge consist of oi-supplying system. Product-pushing structure, bearing seat main shaft pushing rod, inner drum,outer drum, sieving net, product gathering groove feeding pipe washing pipe, housing and other parts.
It is well designed, accurately manufactured,and all touching parts are made of special SS with high corrosion resistance, extremely low carbon content, high molybdenum content or any SS required by the customer.
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Model
Speed
(rpm)
Pump motor
(Kw)
Main motor
(Kw)
Sea Salt Output
(T/H)
Mineral Salt Output
(T/H)
PP-25
3000
4
7.5
1.5
2
PP-40
2500
5.5-7.5
11-15
2-3
5-7
PP-50
2000
22
45
8
12
PP-60
1360
30
55
12-13
20
....

Product structure

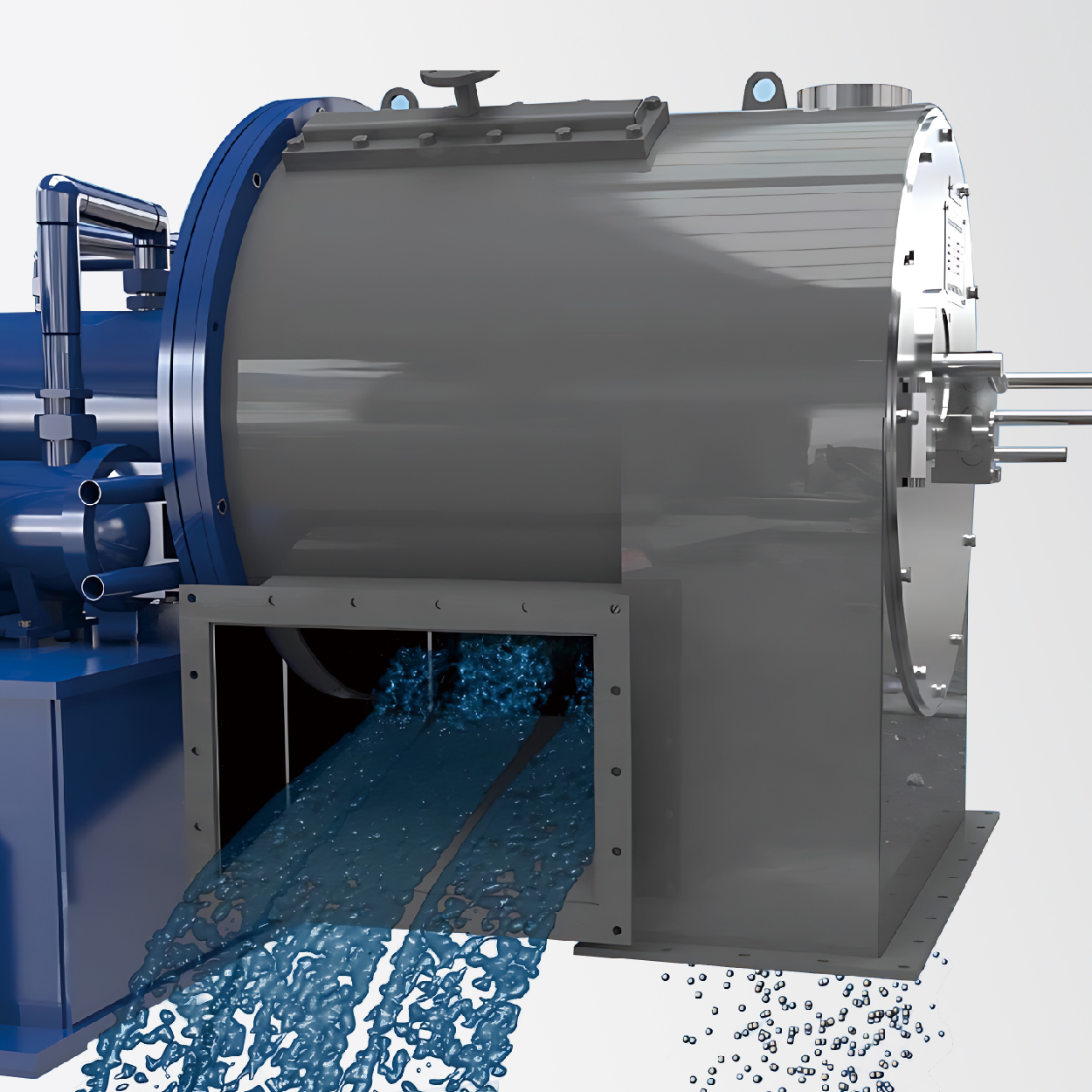

When the drum runs on a full speed driven by the main motor and transmission belt the suspension will be led to the product distributing play through feeding pipeline continuously. When the suspension will be distributed evenly on the filter net on the inner first-rate drum.

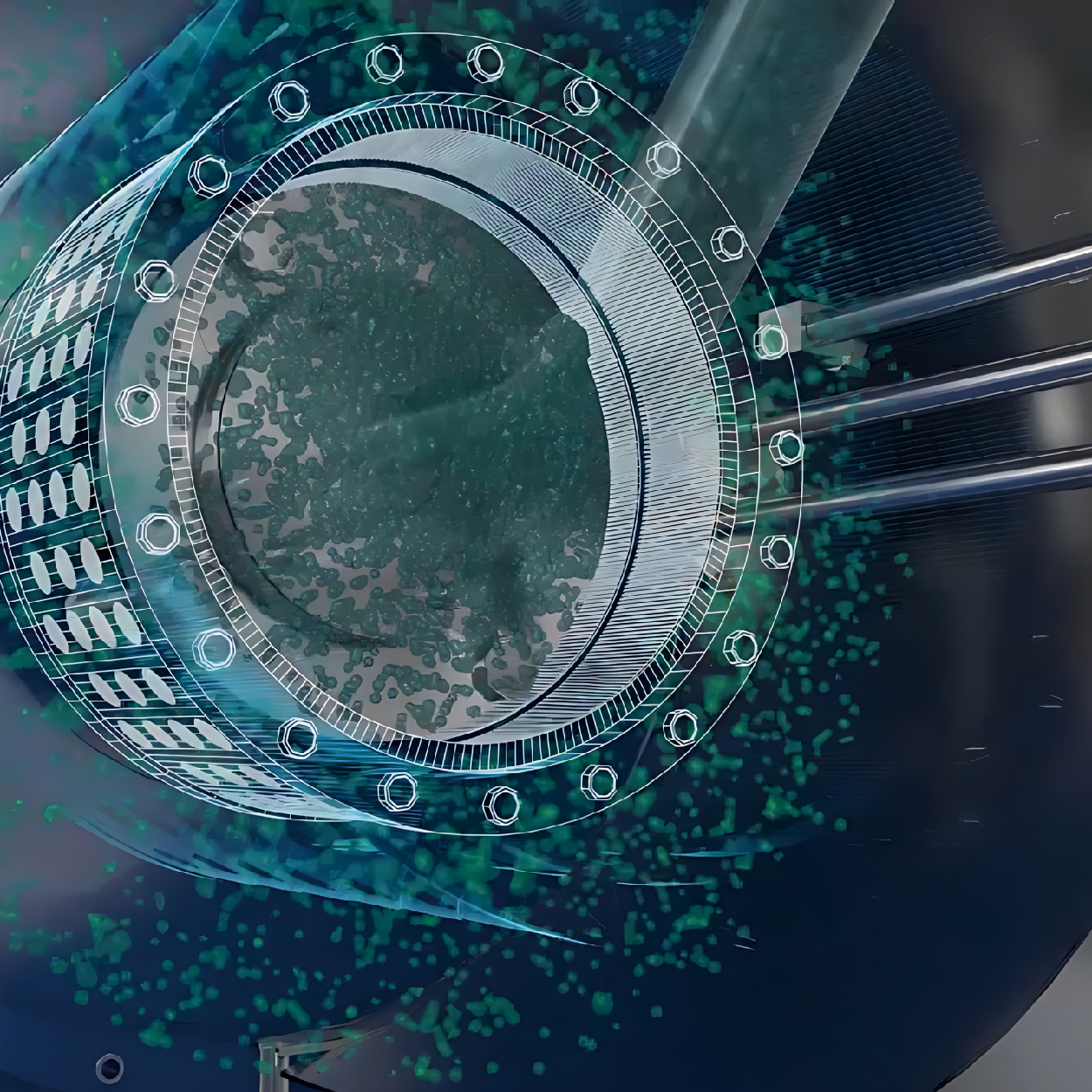

Most of the liquid phase will be thrown out through the fitter net and the filter holes on the drum wall and then drained outside through liquid outlet.The solid will be intercepted on the first-grade drum and form a cake ring While the drums of the two grad es are revolving together at a same speed the drum of the first grade will move reciprocate continuously in piston by the pushing of the pistons then the pushing plate will be able to push out the filter cake on the drum of the first grade. in the next step the filter cake will be pushed into the drum of the second grade to further separate and form a new filter cake Then the outer edge of the first-grade drum will push the new filter cake out of the second-grade drum continuously. The filtering and washing liquid can be drained out separately if necessary
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Its advantages are: bearing design life: ≥30,000 hours.

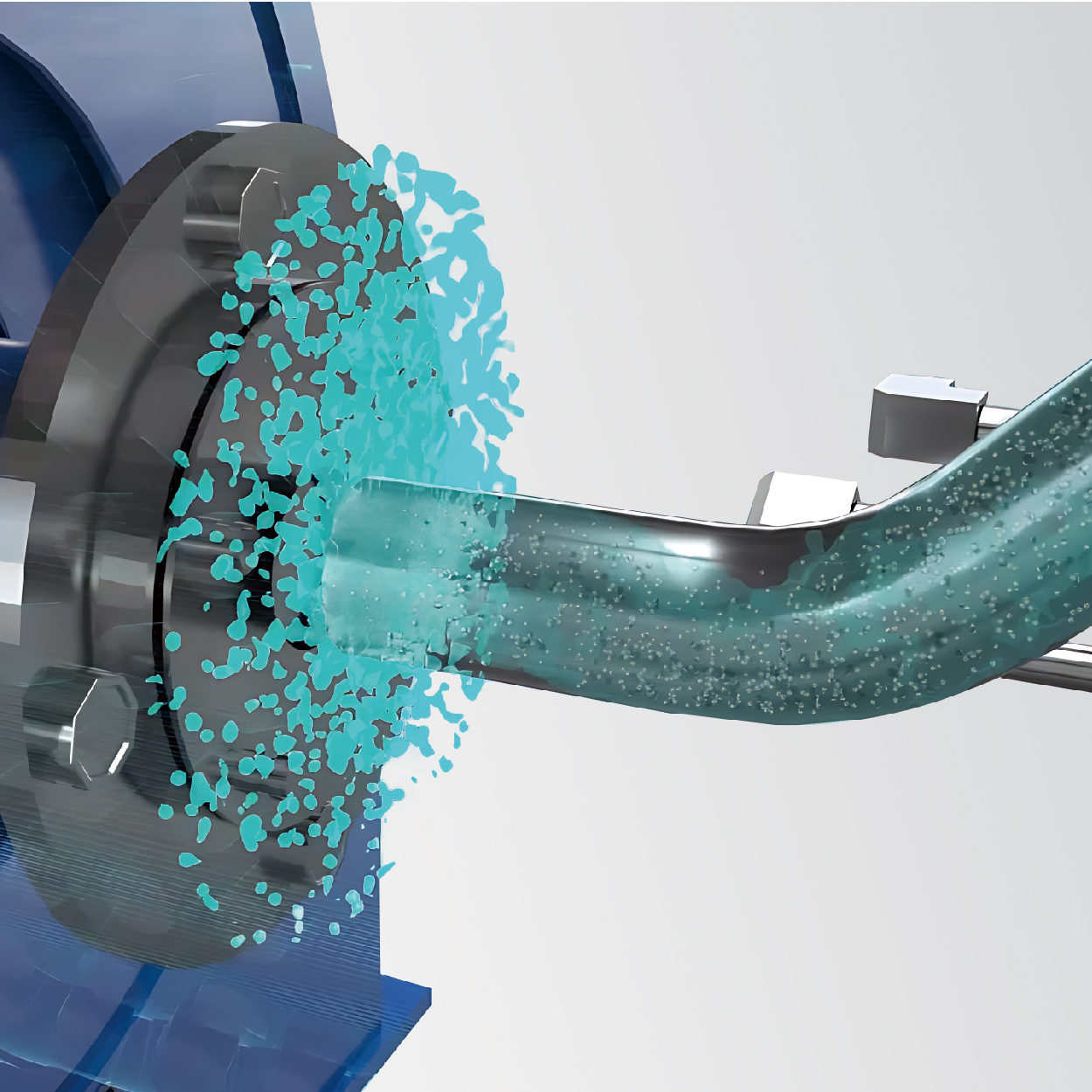

Mechanical seal design life: ≥8000 hours.
Machine design life: ≥15 years.
Operating time Guaranteed to exceed 6000 hours per year under normal operating conditions.
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums

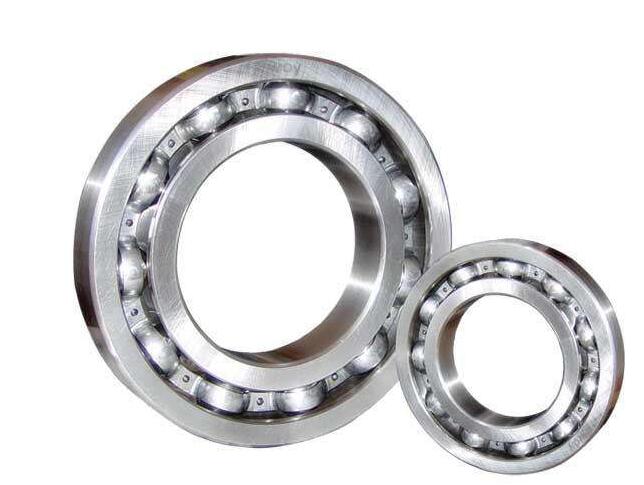

Centrifuge bearing life ≥3000h
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums

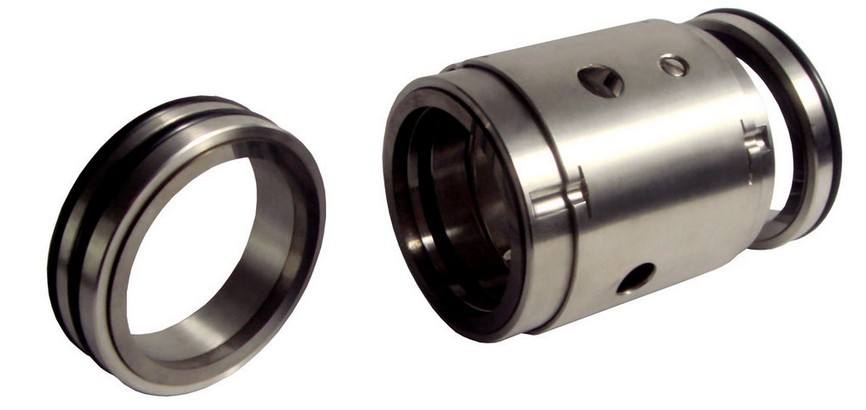

Centrifuge seal design life ≥8000h
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Centrifuge design life ≥ 15 years, regular working time ≥6000h/year.

Application field
It is suitable for the separation of suspension with solid particle size greater than 01mm and density greater than 30%. It can be used in chemical and food industry to produce sodium chloride,ammonium fluoride,ammonium bicarbonate, sodium sulfate,urea,polyethylene polystyrene, oxalate, nitrate and so on.
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.The machine can be used to continuously dewater and wash the slurry with crystal and fiber bigger than 50um,so far,it has succeeded in separating more than 200 different kinds of products,such as sodium salt, ammonium salt, sylvine tripolyamide , PVC,EPS,etc.
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums

Horizontal 2 Stage Pusher Centrifuge Automatically Continuous Double Drums
